Warning: All pipe plugs must be blocked or anchored adequately against a force equal to the head pressure times the cross-sectional area of the pipe. Debris or protrusions in the pipeline can damage a seal or rupture inflatable plugs. NEVER use an inflatable plug when its failure could cause injury or catastrophic damage or as the only means of protection for personnel working downstream. Use an adequately anchored Mechanical Plug for personnel protection. NEVER use a test pressure greater than the capacity of the weakest pipe or component in the system. Actual conditions vary so user must accept full risk and responsibility for the selection and use of any product. Please review our Warranty, Terms and Conditions.

Note 1: Mechanical and Molded Rubber Plugs are generally used for testing because fabricated Multi-Flex^® style plugs may allow some seepage unless customized for a positive seal.

Note 2: We are constantly upgrading our products and while we try to keep the websites up to date it is possible more current specifications may be on a quote or confirming order. Images are typically representative and may not be an exact representation especially of the item size.

Note 3:Use any product or process in accordance with all applicable laws, including federal, state, and local regulations, and with manufacturer-specified instructions.

Returns: Email “Returned Goods Authorization” request for standard items in new condition returned within 30 days to: Sales@PetersenProducts.com Include the original Order Number and Date received. Any credit allowed will be against future purchases after a 20% handling and restocking charge. Please download, complete and attach this form with your email.

By-Pass	None
Dia. Max	3.1" (79mm)
Dia. Min	2.8" (71mm)
Lngth, Overall	2.5" (64mm)
Material, Body	Glass Reinforced ABS
Material, Hardware	Galvanized Steel
Material, Seal	Natural Rubber
Nominal Pipe	3" (76mm)
Pipeline Max PSI	17 psi (1.19 bar)
Pressure Pipeline Max Head	40 ft (12.19 m)
Sage Subcategory Number	W1439
Seal Expansion System	Wing Nut
Shipping Wt.	1 Lb (0.45 Kg)
Style	End of Pipe
Temperature Max. Service F	125 F (51.66 C)

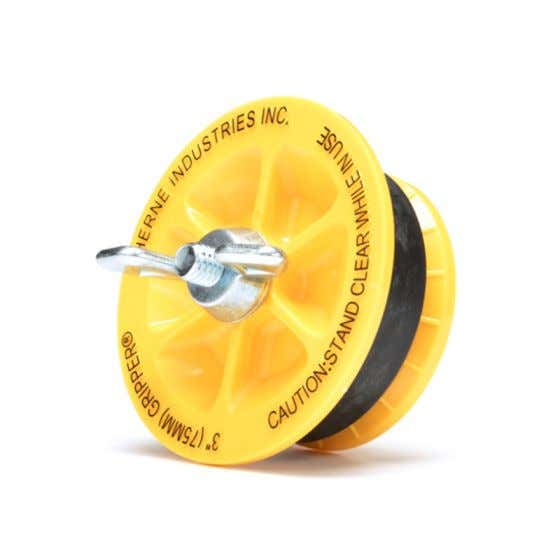

Pipe Plug, Mech, Abs, Wing Nut, End Of Pipe, 3" Dia
